黄色全自动玻璃上片台

Specification of Glass Loading Machine2020年最新款 (独家带上片记忆功能)多功能 一键式 全自动 玻璃上片机:是一款非常适用的玻璃取片、气浮、掰片一体机。有一键自动寻找玻璃、360旋转等功能,完美的无线遥控控制系统可轻松实现取片、放片、掰片,且安全可靠。此设备也是一个可移动的气浮台,安装一个大功率高压风机,比普通的气浮台使用起来更加灵活方便,工人使使用推

全国热线

13197170027

产品详情


Specification of Glass Loading Machine

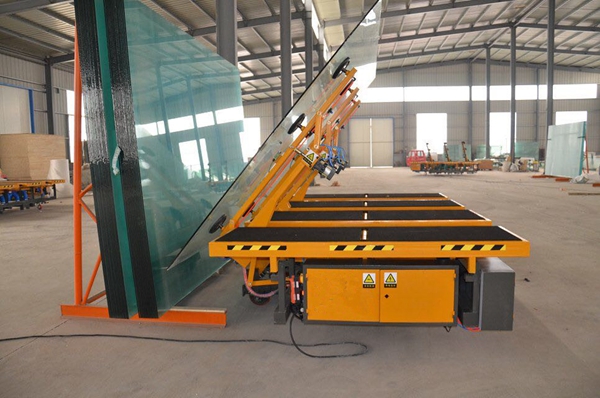

2020年最新款 (独家带上片记忆功能)多功能 一键式  全自动 玻璃上片机:是一款非常适用的玻璃取片、气浮、掰片一体机。有一键自动寻找玻璃、360°旋转等功能,完美的无线遥控控制系统可轻松实现取片、放片、掰片,且安全可靠。此设备也是一个可移动的气浮台,安装一个大功率高压风机,比普通的气浮台使用起来更加灵活方便,工人使使用推玻璃移动更加轻松,也保护玻璃不被划伤。开片顶杆是一横两竖三个顶杆,掰片系统可以适应玻璃任意尺寸的切割掰片。

The latest model in 2020 (exclusively with the memory function of loading), a multi-function one-button automatic glass loading machine: it is a very suitable glass picking, air floating, and breaking all-in-one machine. It has functions such as one-key automatic search for glass, 360°rotation, etc. The perfect wireless remote control system can easily realize the fetching, placing and breaking of the film, and it is safe and reliable. This equipment is also a movable air-floating table, equipped with a high-power high-pressure fan, which is more flexible and convenient to use than ordinary air-floating tables. Workers make it easier to move the glass while protecting the glass from being scratched. The opening ejector rod is one horizontal, two vertical and three ejector rods. The breaking system can adapt to the cutting breaking of any size of glass.

全自动玻璃上片台参数

Technical Information:

最大下片尺寸:3.662.80

下片玻璃厚度:3-19mm

移动方向:前、后、左、右、360度全方位自由旋转

下片速度:30秒左右

机器设备外形总尺寸:长3600米×宽2180X820

重量1.2

打包后尺寸长度3650  宽度是2190高度900

功能:遥控操作:下片、上片、气浮、掰片、自由移动。

Maximum download size: 3.66 meters 2.80 meters

Lower glass thickness: 3-19mm

Movement direction: front, back, left, right, 360 degree free rotation in all directions

Unloading speed: about 30 seconds

Overall dimensions of the machine and equipment: length 3600 meters × width 2180 meters × height 820 meters

Weight: 1.2 tons

Packed size: length 3650 width is 2190 height 900

Function: remote control operation: unload, load, float, break, move freely. ...

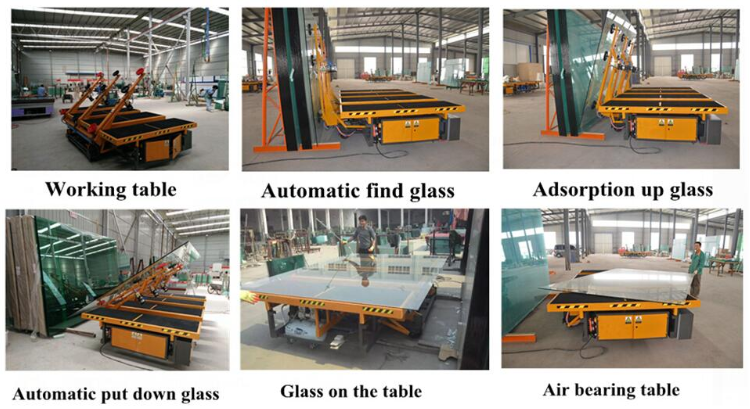

一键式操作设备起臂,行走,吸片,放片系列动作设备自动完成,无需工人操作,方便灵活,稳定性高,效率是传统设备的两倍。本设备可以轻松的抓取玻璃原片尺寸是3660×2800   3660×2440    3300×2440   2440×1830 玻璃厚度3--19毫米的大玻璃板!(也可以抓取4200×2800的厚度8--15毫米的玻璃)

The one-button operation equipment for raising arms, walking, sucking, and putting out the film series of action equipment automatically completes, without worker operation, convenient and flexible, high stability, and the efficiency is twice that of traditional equipment. This equipment can easily grab the original glass sheet with a size of 3660×2800 3660×2440 3300×2440 2440×1830 and a large glass plate with a thickness of 3-19 mm! (You can also grab 4200×2800 glass with a thickness of 8-15 mm)

臂和大架: 分体设计,行走轮和减速电机分体连接,解决了设备焊接变形,确保三臂在同一水平面,如果长期使用下轮子磨损需要更换,可以直接拆卸。

Arm and large frame: Split design, the walking wheel and the geared motor are connected separately, which solves the welding deformation of the equipment and ensures that the three arms are on the same level. If the wheels need to be replaced after long-term use, they can be disassembled directly.

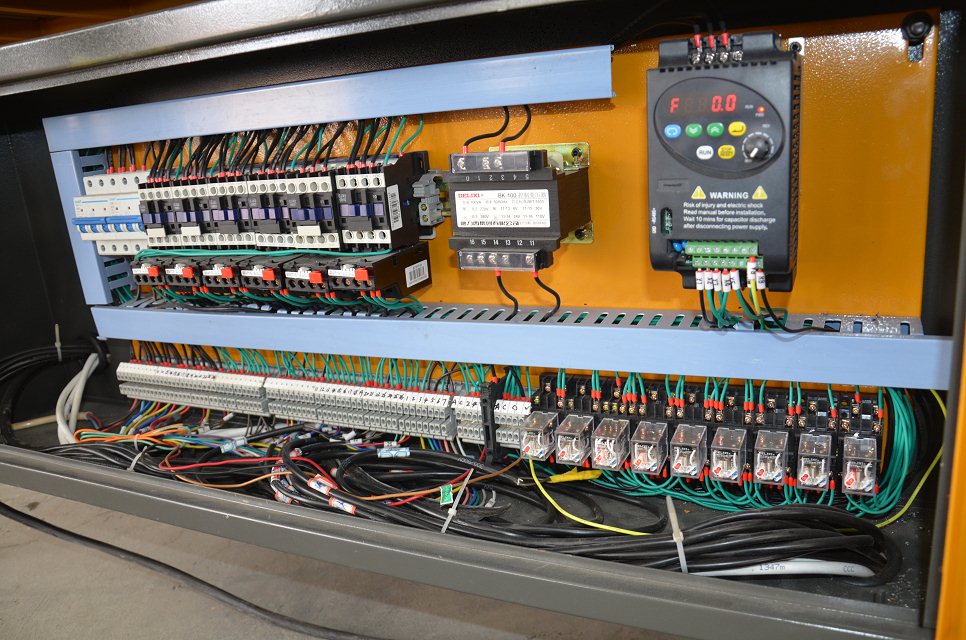

变频器: 3KW进口变频器,可分阶段自动调整起臂速度。更有利于设备的稳定性,在电流过大及其他异常时,变频器会自动报警,使设备停止工作。安全更无损。

Inverter: 3KW imported inverter, which can automatically adjust the boom speed in stages. It is more conducive to the stability of the equipment. When the current is too large or other abnormalities, the inverter will automatically alarm to stop the equipment. The safety is more lossless.

行走电机 : 前进减速机配纯铜电机,大功率电机,承载力强,设备行走平稳,电机内部采用12-1锡青铜材质,传动效率比传统电机高15%左右,蜗轮材质更耐磨,寿命更久,油封全部采用瑞典SKF,轴承台湾UBC,内部油脂采用美孚牌全合成润滑油,箱体采用德国最新型外观。

Walking motor: The forward reducer is equipped with a pure copper motor, a high-power motor, strong carrying capacity, and the equipment runs smoothly. The interior of the motor is made of 12-1 tin bronze material. The transmission efficiency is about 15% higher than that of the traditional motor. The worm gear material is more wear-resistant and has a long life. For longer, all oil seals are made of Swedish SKF, bearing Taiwan UBC, internal grease uses Mobil brand fully synthetic lubricants, and the box body adopts the latest German appearance.

表面处理: 使用环氧底漆+固化剂     工业设备专用烤漆+固化剂,附着力好,光泽度高,硬度高,耐候性,耐酒精,耐酸,耐碱,耐盐雾等性能。

Surface treatment: use epoxy primer + curing agent special baking paint + curing agent for industrial equipment, good adhesion, high gloss, high hardness, weather resistance, alcohol resistance, acid resistance, alkali resistance, salt spray resistance and other properties.

吸盘: 乳白色 纯硅胶吸盘,高品质硅胶+吸盘总成,无毒,无味,防震,防霉,防晒,耐磨耐滑,防老化,耐腐蚀经久耐用。

Suction cup: Milky white pure silicone suction cup, high-quality silica gel + suction cup assembly, non-toxic, odorless, shockproof, mildewproof, sunscreen, wear-resistant, anti-slip, anti-aging, corrosion-resistant and durable.

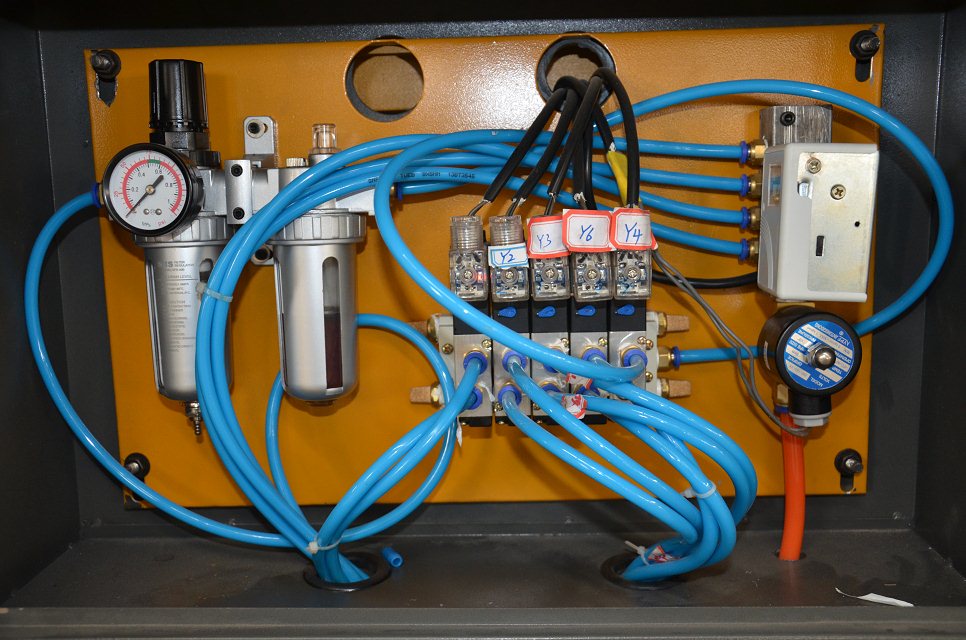

气管及接头: 台湾进口亚德客,密封性能好,质量稳定。

Air pipes and joints: Airtac imported from Taiwan, with good sealing performance and stable quality.

气浮平台风机: 国标3KW+12风叶,根据上片台的特性定制,风机体积,风口形状,风叶角度和数量都是特殊定制,小功率大风量。

Air-floating platform fan: National standard 3KW+12 fan blades, customized according to the characteristics of the loading table, fan volume, tuyere shape, blade angle and number are all customized, small power and large air volume.

空压机(气泵):设备本身配带一个1100瓦的大功率静音高压气泵,声音小  功率大  打气快,浙江名牌奥突斯牌,省去回家后再另外再接气路管线的麻烦!!

Air compressor (air pump): The equipment itself is equipped with a high-power silent high-pressure air pump of 1100 watts, with low sound, high power and fast pumping. Zhejiang famous brand Otusi brand, saves the trouble of connecting the air pipeline after returning home! !

独家带玻璃取片记忆功能,也就是说只要用手动功能遥控把玻璃上片完成放到台面上,转换为自动模式后,一按遥控器,设备会根据记忆自动完成所有剩下的步骤,省事省力,工人轻松,老板放心!!无论男女工人,只要是会摁遥控器,就能独立操作设备,不需要专门的师傅专业操作

Exclusive with glass fetching memory function, which means that as long as you use the manual function to remotely place the glass on the table and switch to automatic mode, press the remote control, the device will automatically complete all the remaining steps according to the memory, saving trouble Save effort, ease workers, and rest assured boss! ! Both male and female workers, as long as they can press the remote control, they can operate the equipment independently, without the need for professional operation by a special master!

真正做到工人省心,老板放心!!

Really make workers worry-free, and bosses can rest assured! !
